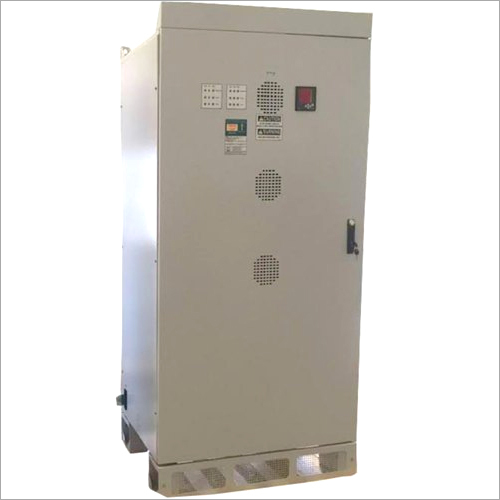

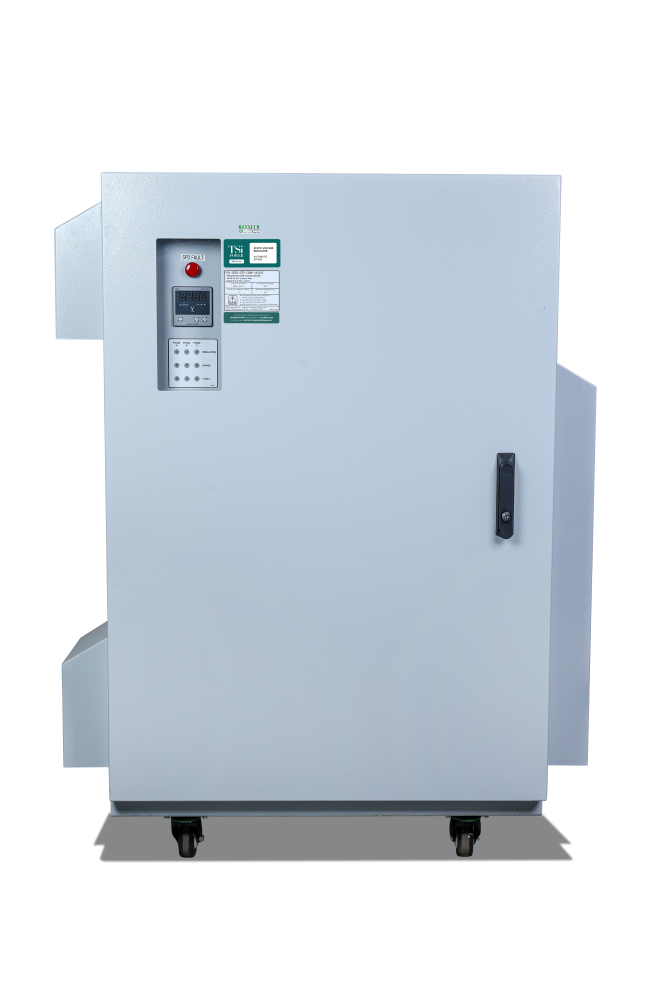

13% Three Phase IGBT Based Static Voltage Stabilizer With Precision (VRP)

About 13% Three Phase IGBT Based Static Voltage Stabilizer With Precision (VRP)

TSI-VRPassures seamless operation of electronic machines by providing purest powerthrough continuous pulse width modulation (PWM) switching of a buck-boosttransformer using a convertor engine.

• The high frequency Insulated gate bi-polar transistor (IGBT) driven converter engine takes the incoming ac power, measures against the nominal voltage and adds or subtracts voltage. 20,000 times per second, to achieve real-time compensation of voltage disturbances, sag or swell. All this is achieved within 20 milliseconds through seamless PWM compensation of voltage so that all voltage disturbances are corrected within ITIC curve for flawless operation of electronics.

Key VRPTechnology Features And Consumer Benefits :

• Since the VRP technology controls any sag or swell cycle within 20 milliseconds ,it is the ideal voltage conditioner for your sensitive electronic devices.
• Since the VRP has in-built spike and noise controtit eliminates the need of additional spike & nose filters.
• Since the VRP does not switch components in the power path , it is compatible with most loads including regenerative loads.
• AC input circuit breakers prevent costly equipment damage due to load side faults.
• Automatic bypass circuitry assures fail safe operation.
• Light weight and compact size makes for ease of installation.
• Static technology results in quiet operation, high product up-time & low maintenance.
• High efficiency and energy savings though optimum voltage result in entry efficient operation.
• Tight control over electronic card failures. data corruption and machine breakdowns results in higher produttivity,lower operating costs and greater consumer comfort.

Application :

• CNC & Robotics
• Auto & Auto Ancillary
• Oil & Gas
• Textile Spinning, Processing, Knitting, Weaving
• Engineering & Process Industry
• Wood Cutting
• Radar & Telecommunication
• R&D, Testing, Diagnostics
• Plastic Processing
• Printing & Packaging
• Building Management
• Security & Surveillance

ProtectiveFeatures :

• Standards & Safety : Designed to meet UL 60950-I standards, Protection class IP 20.

• Overload & Short Circuit Protection : Through Suitably rated input circuit breaker.

• Soft Switch On : This feature ensure that the output voltage is never higher than the input voltage upon switch on, before it commences full stabilization.

• Automatic Bypass : Regulator engine will be automatically bypassed when there is a fault condition.

• Surge Test Conditions : Per class 2 surge combination wave.

• Surge Let Through Voltages : 1.2x50us, 6kV, 8 x 20us, 3kA waveform, L-N <300V.

Note : Price range starts from 95246 to958328 per piece.
